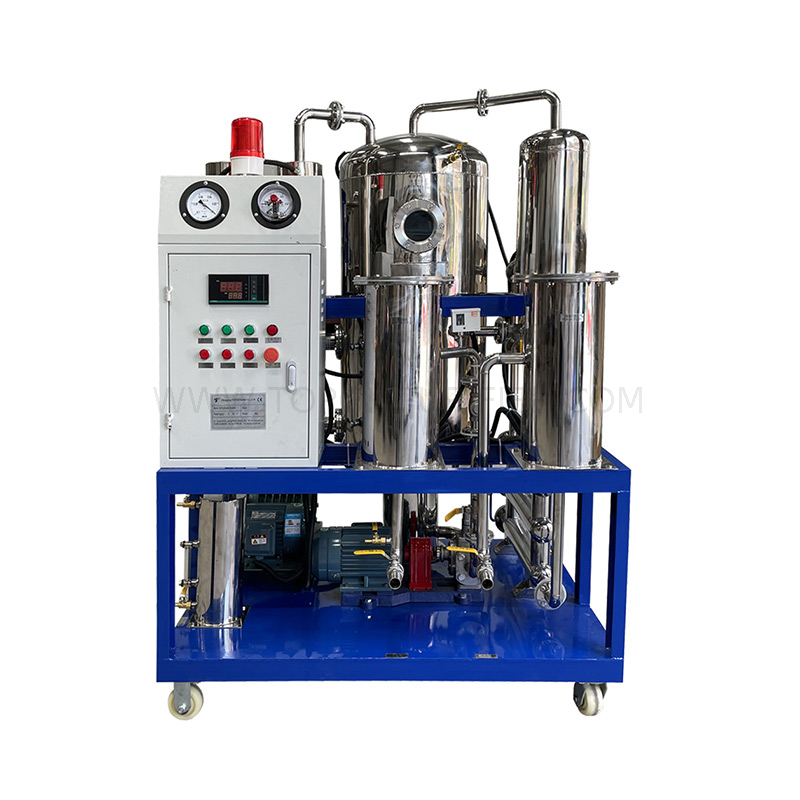

TYD series vacuum oil purifier is specially designed to treat high water content oils such as lubricant oil, crude oil, engine oil, hydraulic oil, turbine oil, fuel oil, diesel oil, freezing machine oil as well as other cooking oils which require removing large amount of water and filtering impurities.
According to the oil’s nature of high water content, TYD machine is equipped with a high effective vacuum dehydration system with high capacity to separate a lot of water from the oil. This machine can not only remove the mass water, but also remove trace water and impurities with high precision. It adopts technology of film evaporation and molecule evaporation. So it is easy to break the emulsification. The treated oil is limpidity.
To meet customers’ special needs, we develops:
TYD Vaccum Dehydration Machine
TYD -A Fully Automatic Lubricating Oil Purifier
TYD -W Enclosed Lubricating Oil Purifying Unit
TYD -Ex Explosion-Proof Hydraulic Oil Cleaning Machine
Features:
1. High-tech: Molecular demulsification, thin film evaporation.
2. High water content removal: quickly dehydrate oil that even contains water oil half and half.
3. Hi-efficiency: Dehydration rate 0.5-2.5Kg per minute.
4. Adopt the dehydration system that need not to be changed for the whole service life.
5. Strong water removal and demulsification capacity. Easily separate large mount of water and also remove micro amount of water from oil.
6. Special film evaporation and molecule evaporation technology enables quick demulsifying and make the turbid and emulsified oil clear.
7. The film evaporation and molecule evaporation technology is of lifetime service(above 20 years), which avoids the periodic demulsifying filter replacement and also reduces the cost of purification and work intensity.
8. With strong impurities removing capability, its automatic backwash filter element can remove large mount of impurities. Large area deep level precision filtration material can remove the granules from the oil, serving as displacement of oil system cleaning device, which brings serious contaminated oil system back to within the “Serving Steam Turbine Oil Contamination Control Standard”.
9. High automation, small size, safe and reliable. The machine adopts infrared liquid level automatic control device to achieve the man-machine detachment, which makes the operation simpler and more reliable.
Optional Features:
1. Fully Automatic Operation Controlled by Siemens Brand P.L.C (Programmable Logic Controller)
2. Flow Meter
3. Continuous Online Moisture in Oil Meter Model PTT-001)
4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)
5. Metallic Weather Proof Enclosure to prevent rain, sun, dust ect.,
6. Single/Double-axles Road worthy Trailer for Outdoor Use
7. Pirani Digital Vacuum Gauge
8. Regeneration system TPBZ with special brand of earth can remove acidity, sludge, other soluble oil decay products and discoloration
Technical Parameter:
Item | Unit | TYD-10 | TYD-20 | TYD-30 | TYD-50 | TYD-100 | TYD--150 | TYD-200 | TYD-300 | |
Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
Working vacuum | Mpa | -0.06 ~- 0.095 | ||||||||
Working pressure | Mpa | ≤0.4 | ||||||||
Temperature | ℃ | 0~100 | ||||||||
Power supply | 380V/50HZ/3Ph 5 wire(as customer’s requirement) | |||||||||
Working noise | dB (A) | ≤65~80 | ||||||||
Working time | H | ≥ 4000 | ||||||||
Continuous working time | H | ≥150 | ||||||||
Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 | |
Electric heating power | kW | 15 | 18 | 24 | 36 | 60 | 72 | 120 | 150 | |
Total electric power | kW | 17 | 20 | 26 | 39 | 65 | 79 | 128 | 180 | |
Outlet(inlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф50 | Ф50 | Ф60 | |
Weight | kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 | |
Size | L | mm | 1500 | 1500 | 1500 | 1600 | 1750 | 1900 | 1950 | 2100 |
W | mm | 1000 | 1050 | 1050 | 1150 | 1150 | 1600 | 1600 | 1600 | |
H | mm | 1600 | 1600 | 1650 | 1700 | 1750 | 1950 | 1950 | 2000 | |
Index after filtering | Moisture content | PPM | ≤50 | |||||||
Gas content | % | 0.1 | ||||||||
Impurity size | μm | |||||||||
Demulsification value | (fresh oil)≤15min, (oil in operation)≤30mi | |||||||||
Cleanness degree | ≤6(NAS 1638) |
