Octane and Hexadecane Value Tester TP-131

Availability:
Quantity:
  • TP-131

  • TOP OIL PURIFIER

Product Description

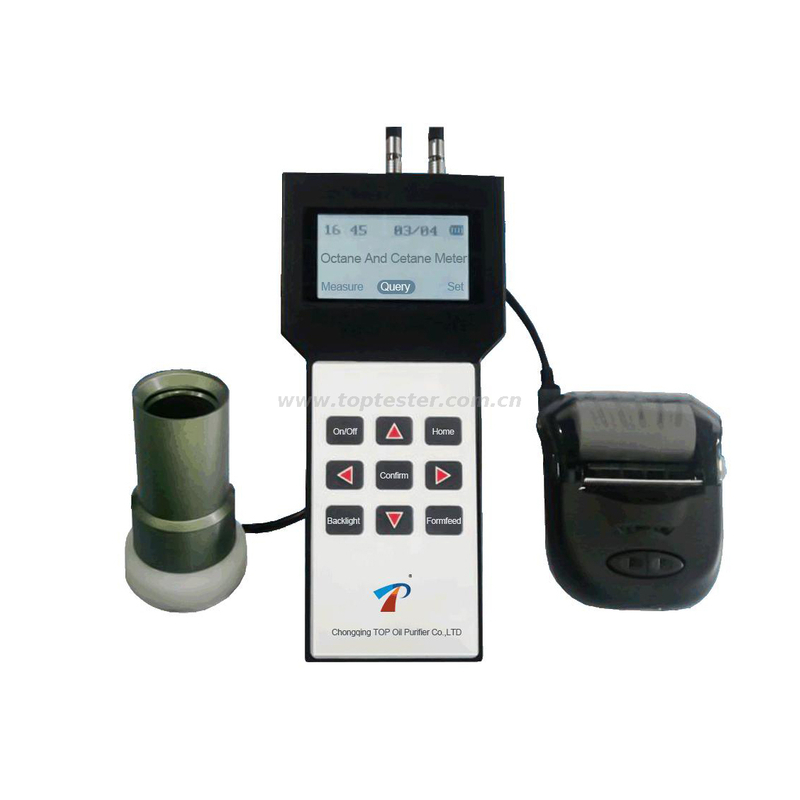

TP-131 octane and cetane value tester is the latest generation of the octane and cetane measuring instrument, in line with ASTM D2699-86, ASTM D2700-86. It adopts international advanced measurement principle, designed in accordance with the diversity of domestic oil, filled the gap of detecting many kinds of oil. TP131 is more precise and quick in the detection of oil octane and cetane value, with English language digital display and big data storage volume. It can directly print the test values, with user-friendly page design, simple operation, imported shell and chip, alloy fully sealed design, long standby cycle charging. It is much suitable for service in working sites, outdoors and laboratories.



Technical characteristics

1.TP-131 can check gasoline octane and diesel cetane value at the same time, dual functions into one.

2.After long-term data collection, database completion, new technologies integration and multiple detection modes, it can detect many kinds of oil such as mathanol gasoline, ethanol gasoline, naphtha, solvent oil, straight-run oil, light oil, aromatics, MTBE, manganese-based, mathanol diesel, catalytic diesel, biodiesel, emulsified diesel etc, filled the gaps in detection for those oil products.

3.Desktop structure, stainless steel countertop, simple design, beautiful appearance, convenient use, complete accessories. Introduced the international dielectric content measurement principle.

4.Fast and accurate detection, simple operation, large screen display with EL backlight support convenient for use in dark environment, menu operation of host panel.

5.Imported Germany instrument shell, durable, small and easy to carry. Chips and core components are imported with instrument sensitivity and service life increased. Alloy metal fully sealed sensor, packing box with high strength, high impact resistance, waterproof, damp-proof, dust-proof, enclosing square sponge.

6.Can pre-set the mode upper and lower limits, automatic display of beyond the scope, convenient for user’s testing needs.

7.Energy saving function of automatic shutdown, with low power consumption design, 4 rechargeable batteries, cycle charging available, higher battery reliability.



Technical parameters

Octane measurement range takes ON as the measurement unit (adjustable according to customers’ need)

40-120 ON

Octane allowing measurement error, per unit (max)

±0.5

Octane measurement result floatable range, per unit (max)

±0.2

Cetane measurement range takes CN as the measurement unit (adjustable according to customers’ need)

20-100CN

Cetane allowing measurement error, per unit (max)

±1CN

Cetane measurement result floatable range, per unit (max)

±0.5CN

Measuring time

<20(second)

Threshold when battery voltage is too low

2.5V

Main body size (length*width*height)

224*106*40mm

Sensor

60*100mm

Weight (max)

5kg

Continuous service time

15 hours

Output method

LCD display, printouts


No Description Value
1 The measurement unit of octane is ON (adjustable as needed) 40-120
2 Permissible error of octane, per unit (max) ±0.5
3 Fluctuate range of octane, per unit (max) ±0.2
4 The measurement unit of cetane is CN (adjustable as needed) 20-100
5 Permissible error of cetane, per unit CN (max) ±1
6 Fluctuate range of cetane, per unit CN (max) ±0.5
7 Measurement duration (second) <20
8 Critical value for battery when voltage is too low, V 2.5
9 Monitor,mm(L×W×H) 224x106x40
10 Sensor,mm 60x100
11 Weight, Kg (max) 5
12 Operation duration (unit: hour) 15
13 Display LED screen, printable result
14 Power consumption 30ma
